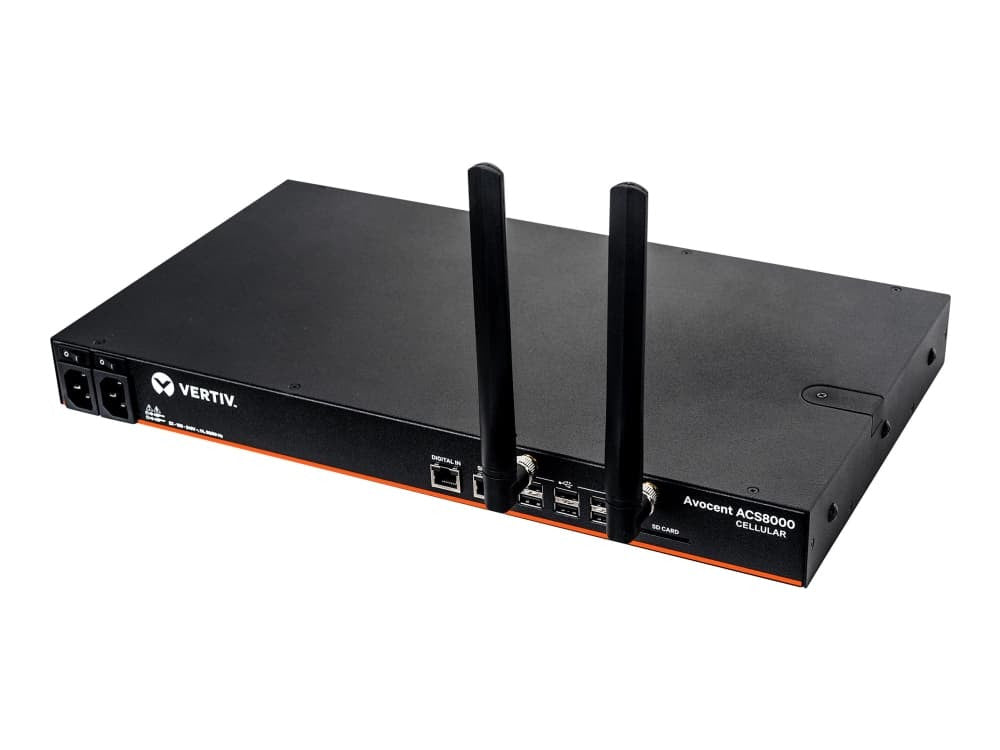

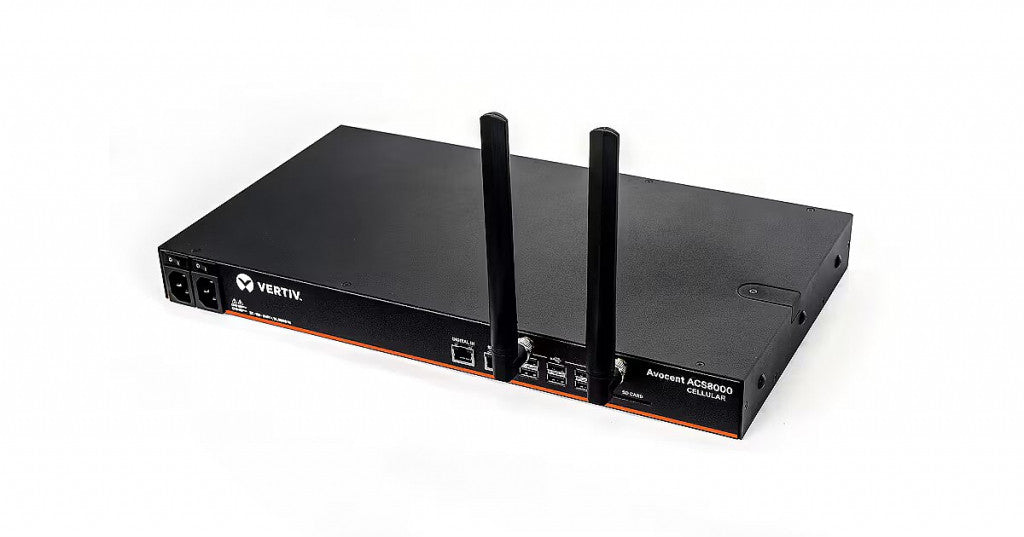

The Avocent ACS8000 advanced serial console server series continues with a new, ground-up platform of innovation, integrating important connectivity features such as cellular, gigabit fiber, USB, and sensors. IT professionals and network operations center personnel can now harness these new capabilities to further enable them to perform secure, remote data center management and out-of-band management of IT assets from anywhere in the world. Featuring a dual core ARM processor architecture with expanded memory capabilities, the updated Linux operating system and DS View management software, provides the Avocent ACS8000 optimal performance, security, and reliability for a complete out-of-band management solution.
This includes:
REMOTE MANAGEMENT: Avocent ACS8000 8-Port Advanced Terminal Management Serial Console Server allows users to access and troubleshoot remote locations using automatic network failover to cellular (and failback).
AUTOMATED PROVISIONING: Offers fast, automated configuration with zero touch provisioning; compliant with data center access and security policies; powerful Dual-core ARM processor and 16GB of flash memory to support automation scripting.
8 USB 2.0 PORTS: Support external devices, IoT products and IT equipment; Features digital input/output and sensor ports.
POWER DEVICE MANAGEMENT: Dual 1 Gigabit Ethernet port for network connectivity and failover and secure in-band management for daily networking management. Comes with expanded support for Rack PDUs from Vertiv, ServerTech, APC, Raritan, and Eaton along with Vertiv GXT4 and GXT5 UPS systems.
ENVIRONMENTAL SENSOR PORT: Connect to temperature, humidity, differential pressure, leak, and door pin sensors.
Specifications
| Technical details |
| Rack-montage | Yes |
| Zero-touch provisioning (ZTP) | Yes |
| Web-based management | Yes |
| 4G LTE | Yes |
| Management functions |
| Management protocols | LOCAL,LDAP,RADIUS,TACACS+ and OneTimePasswords(OTP) |
| Security |
| Supported security algorithms | 3DES, 128-bit AES, 192-bit AES, 256-bit AES, AES, FIPS 140-2, HTTPS, IPSec, SHA-256, SNMP, SNMPv3, SSH, SSH-2 |
| IP-adresfilter | Yes |
| One-time password (OTP) | Yes |
| Gates & Interfaces |
| console port | RJ-45 |
| Serial port (s) | 8 |
| Number of USB 2.0 ports | 8 |
| Number of Ethernet LAN (RJ-45) ports | 2 |
| Number of module slots SPF | 2 |
| Socket types | C13 plug |
| Software |
| Includes operating system | Embedded Linux |
| Weight & dimensions |
| Dimensions (W x D x H) | 438.2 x 241.3 x 44.5 mm |
| Weight | 3.4 kg |
| Energy |
| Type of power source | AC |
| AC-ingangsspanning | 109 - 240 V |
| AC-ingangsfrequentie | 50 - 60 Hz |
| Power consumption (typical) | 20 W |
| Power consumption (max) | 7 W |
| Number of power supplies | 28 |
| Environmental requirements |
| Operating temperature (T-T) | -10 - 60 °C |
| Storage temperature | -20 - 70 °C |
| Relative humidity in operation (H-H) | 50 - 60 percent |
| Humidity at storage | 20 - 80 percent |
| Memory |
| Flash memory | 16000 MB |
| RAM-capaciteit | 1024 MB |
| RAM-type | DDR3L |
| eMMC capacity | 16 GB |
| processor |
| processor family | ARM Cortex-A9 |
| Processor architecture | ARM Cortex-A9 |
| Number of processor cores | 2 |
| Frequency Processor | 667 MHz |
| Network |
| Copper Ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
| Supported cable types | Cat5, Cat5e, Cat6, Cat6+, Cat6a, Cat6e, Cat7, Fiber |
